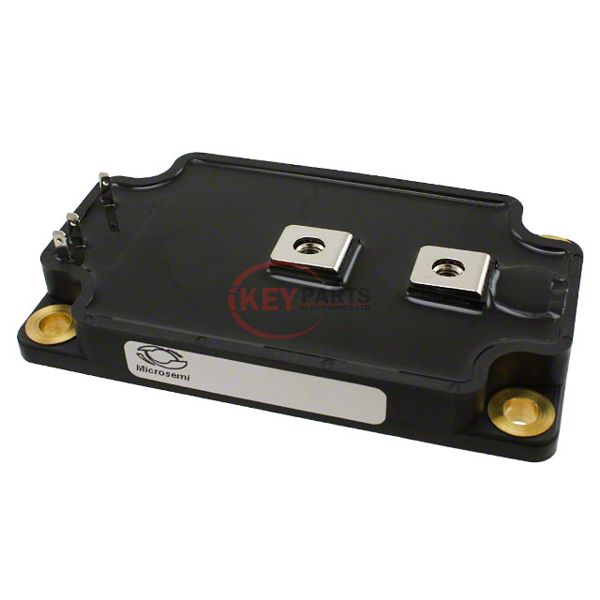

Series | POWER MOS 7® | |
Package | Bulk | |
Part Status | Active | |
FET Type | N-Channel | |
Technology | MOSFET (Metal Oxide) | |
Drain to Source Voltage (Vdss) | 1000 V | |
Current - Continuous Drain (Id) @ 25°C | 215A (Tc) | |
Drive Voltage (Max Rds On, Min Rds On) | 10V | |
Rds On (Max) @ Id, Vgs | 52mOhm @ 107.5A, 10V | |
Vgs(th) (Max) @ Id | 5V @ 30mA | |
Gate Charge (Qg) (Max) @ Vgs | 1602 nC @ 10 V | |
Vgs (Max) | ±30V | |
Input Capacitance (Ciss) (Max) @ Vds | 42700 pF @ 25 V | |
FET Feature | - | |
Power Dissipation (Max) | 5000W (Tc) | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |
Supplier Device Package | SP6 | |
Package / Case | SP6 |
We can supply APTM100UM45DAG, use the request quote form to request APTM100UM45DAG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTM100UM45DAG. The price and lead time for APTM100UM45DAG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTM100UM45DAG. We look forward to working with you to establish long-term relations of cooperation.
![]() |
