IPB039N10N3GATMA1

Enlarger

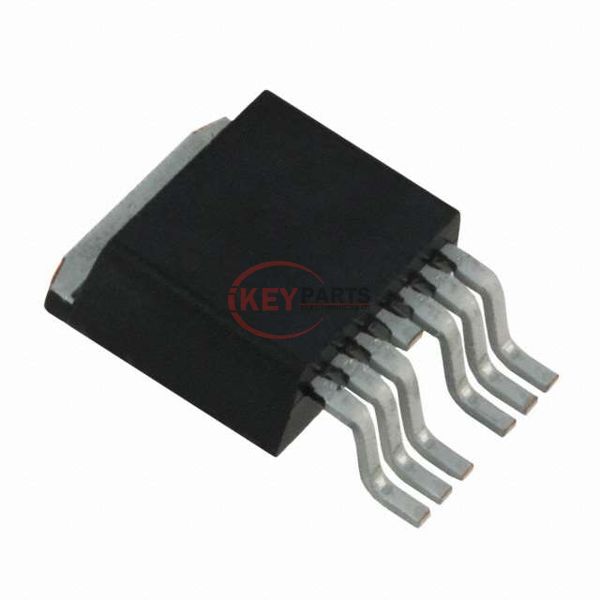

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPB039N10N3GATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPB039N10N3GATMA1
Description
MOSFET N-CH 100V 160A TO263-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPB039N10N3GATMA1 PDF
IPB039N10N3GATMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs3.9mOhm @ 100A, 10V
Vgs(th) (Max) @ Id3.5V @ 160µA
Gate Charge (Qg) (Max) @ Vgs117 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds8410 pF @ 50 V
FET Feature-
Power Dissipation (Max)214W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
Request Quote Now
Request Quote Now

We can supply IPB039N10N3GATMA1, use the request quote form to request IPB039N10N3GATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPB039N10N3GATMA1. The price and lead time for IPB039N10N3GATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPB039N10N3GATMA1. We look forward to working with you to establish long-term relations of cooperation.
