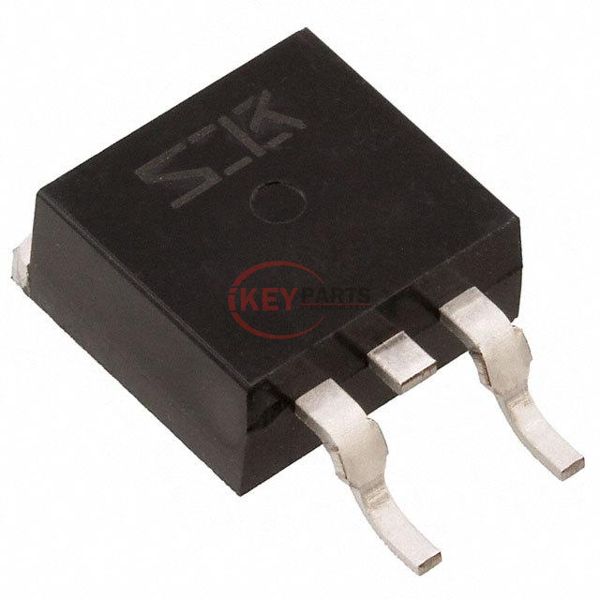

2SK3800

Enlarger

Lmages are for reference only See Product Specitications

Sanken Electric Co., Ltd. 2SK3800

Manufacturer :
Sanken Electric Co., Ltd.
Mfr. Part # :
2SK3800
Description
MOSFET N-CH 40V 70A TO220S
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SK3800 PDF
In Stock
511
2SK3800 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C70A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs6mOhm @ 35A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5100 pF @ 10 V
FET Feature-
Power Dissipation (Max)80W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-220S
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply 2SK3800, use the request quote form to request 2SK3800 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SK3800. The price and lead time for 2SK3800 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SK3800. We look forward to working with you to establish long-term relations of cooperation.
