TSM120N06LCS RLG

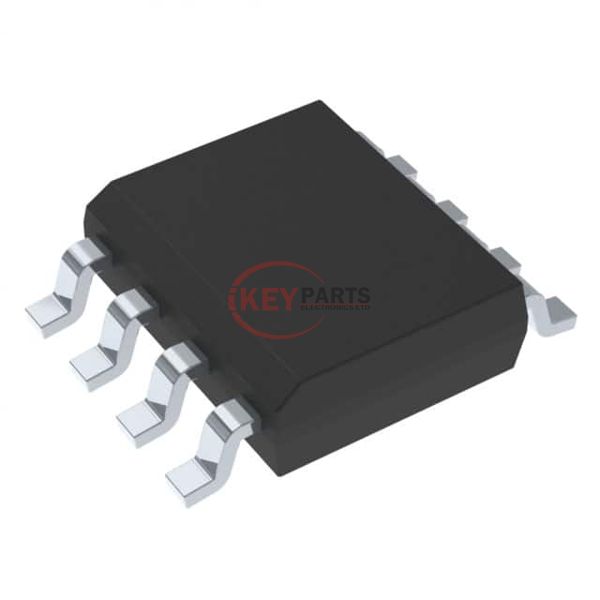

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM120N06LCS RLG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM120N06LCS RLG
Description
MOSFET N-CHANNEL 60V 23A 8SOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM120N06LCS RLG PDF
TSM120N06LCS RLG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs12mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs37 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2193 pF @ 30 V
FET Feature-
Power Dissipation (Max)12.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOP
Package / Case8-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply TSM120N06LCS RLG, use the request quote form to request TSM120N06LCS RLG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM120N06LCS RLG. The price and lead time for TSM120N06LCS RLG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM120N06LCS RLG. We look forward to working with you to establish long-term relations of cooperation.
