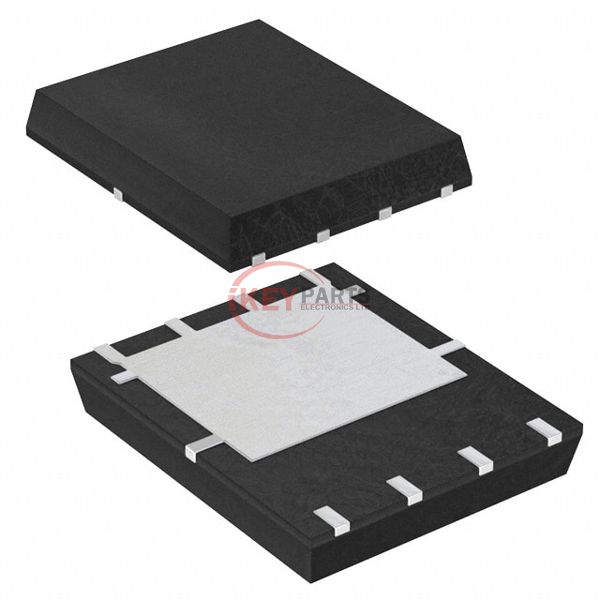

RS1E220ATTB1

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor RS1E220ATTB1

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RS1E220ATTB1
Description
MOSFET P-CH 30V 22A/76A 8HSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RS1E220ATTB1 PDF
In Stock
2206
RS1E220ATTB1 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C22A (Ta), 76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.1mOhm @ 22A, 10V
Vgs(th) (Max) @ Id2.5V @ 2mA
Gate Charge (Qg) (Max) @ Vgs130 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5850 pF @ 15 V
FET Feature-
Power Dissipation (Max)3W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HSOP
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply RS1E220ATTB1, use the request quote form to request RS1E220ATTB1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RS1E220ATTB1. The price and lead time for RS1E220ATTB1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RS1E220ATTB1. We look forward to working with you to establish long-term relations of cooperation.
