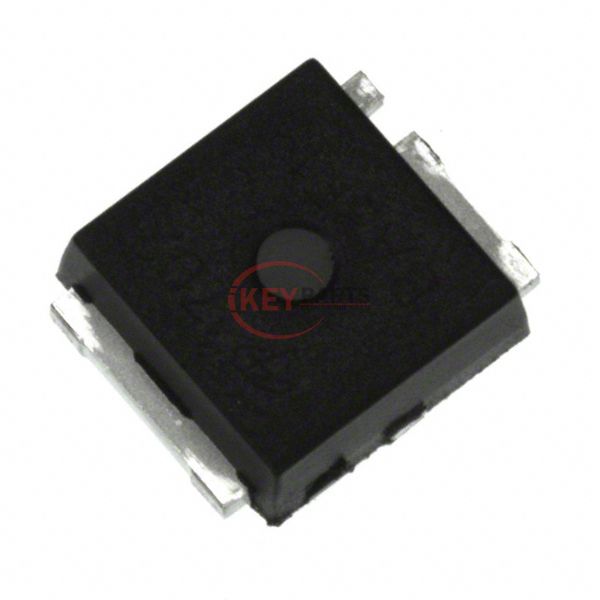

AOL1404G

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AOL1404G

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AOL1404G
Description
MOSFET N-CH 20V 30A/46A ULTRASO8
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AOL1404G PDF
In Stock
415
AOL1404G Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C30A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs4.6mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds3300 pF @ 10 V
FET Feature-
Power Dissipation (Max)6.2W (Ta), 50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageUltraSO-8™
Package / Case3-PowerSMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply AOL1404G, use the request quote form to request AOL1404G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOL1404G. The price and lead time for AOL1404G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AOL1404G. We look forward to working with you to establish long-term relations of cooperation.
