APTM120U10SAG

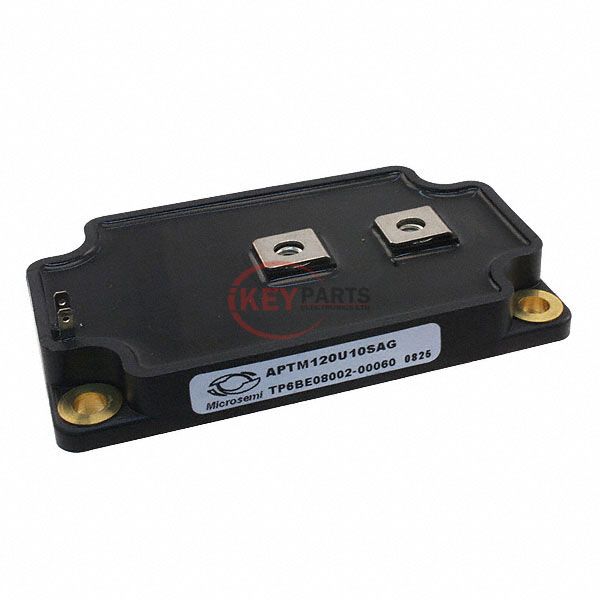

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APTM120U10SAG

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APTM120U10SAG
Description
MOSFET N-CH 1200V 116A SP6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APTM120U10SAG PDF
APTM120U10SAG Tech Specifications
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C116A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs120mOhm @ 58A, 10V
Vgs(th) (Max) @ Id5V @ 20mA
Gate Charge (Qg) (Max) @ Vgs1100 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds28900 pF @ 25 V
FET Feature-
Power Dissipation (Max)3290W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSP6
Package / CaseSP6
Request Quote Now
Request Quote Now

We can supply APTM120U10SAG, use the request quote form to request APTM120U10SAG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTM120U10SAG. The price and lead time for APTM120U10SAG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTM120U10SAG. We look forward to working with you to establish long-term relations of cooperation.
