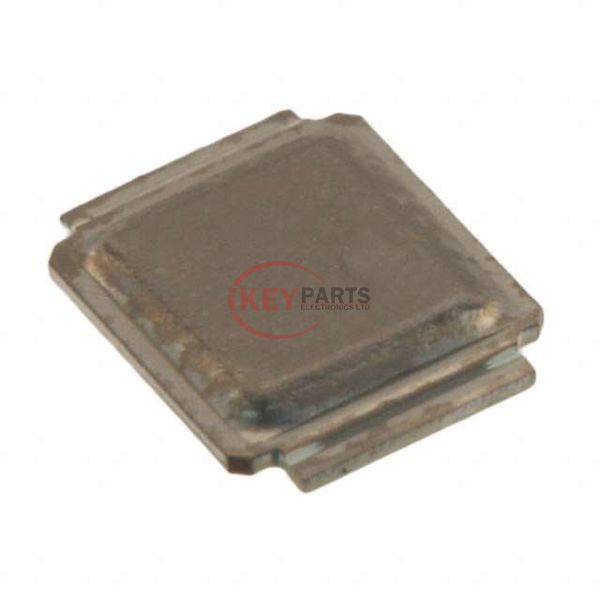

BSF024N03LT3GXUMA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSF024N03LT3GXUMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSF024N03LT3GXUMA1
Description
MOSFET N-CH 30V 15A/106A 2WDSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSF024N03LT3GXUMA1 PDF
BSF024N03LT3GXUMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C15A (Ta), 106A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs71 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5500 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.2W (Ta), 42W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMG-WDSON-2, CanPAK M™
Package / Case3-WDSON
Request Quote Now
Request Quote Now

We can supply BSF024N03LT3GXUMA1, use the request quote form to request BSF024N03LT3GXUMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSF024N03LT3GXUMA1. The price and lead time for BSF024N03LT3GXUMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSF024N03LT3GXUMA1. We look forward to working with you to establish long-term relations of cooperation.
