PMN48XP,115

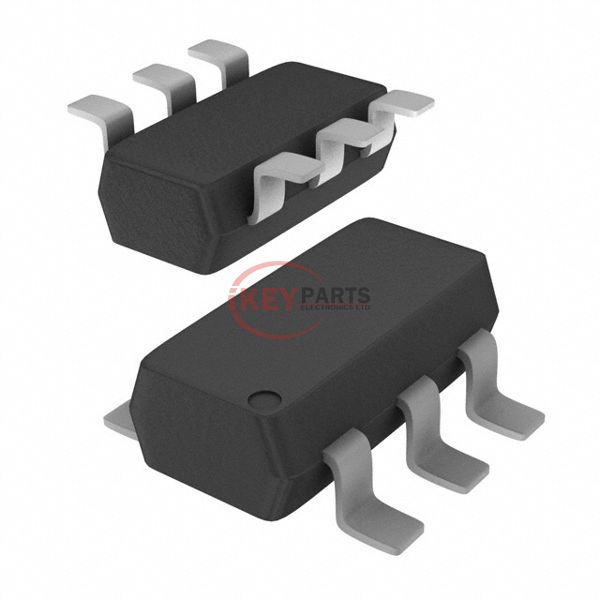

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PMN48XP,115

Manufacturer :
Nexperia
Mfr. Part # :
PMN48XP,115
Description
MOSFET P-CH 20V 4.1A 6TSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMN48XP,115 PDF
PMN48XP,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs55mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1000 pF @ 10 V
FET Feature-
Power Dissipation (Max)530mW (Ta), 6.25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
Request Quote Now
Request Quote Now

We can supply PMN48XP,115, use the request quote form to request PMN48XP,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMN48XP,115. The price and lead time for PMN48XP,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMN48XP,115. We look forward to working with you to establish long-term relations of cooperation.
