IRFB7740PBF

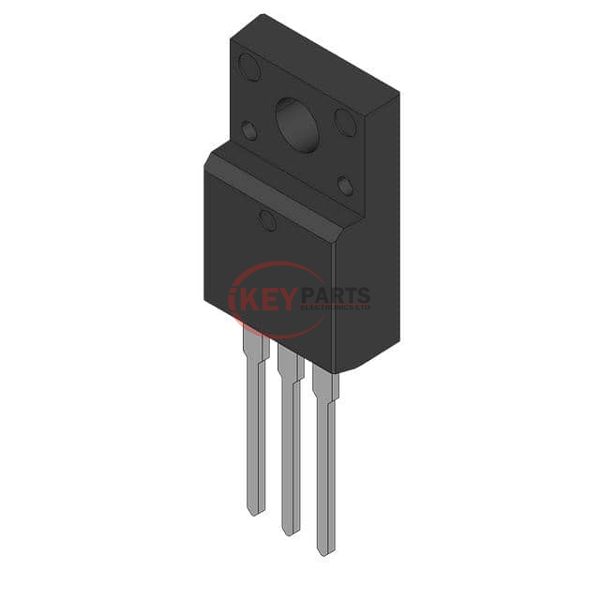

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRFB7740PBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRFB7740PBF
Description
MOSFET N-CH 75V 87A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFB7740PBF PDF
In Stock
781
IRFB7740PBF Tech Specifications
SeriesStrongIRFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C87A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs7.3mOhm @ 52A, 10V
Vgs(th) (Max) @ Id3.7V @ 100µA
Gate Charge (Qg) (Max) @ Vgs122 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4650 pF @ 25 V
FET Feature-
Power Dissipation (Max)143W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply IRFB7740PBF, use the request quote form to request IRFB7740PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFB7740PBF. The price and lead time for IRFB7740PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFB7740PBF. We look forward to working with you to establish long-term relations of cooperation.
