IRF820ALPBF

Enlarger

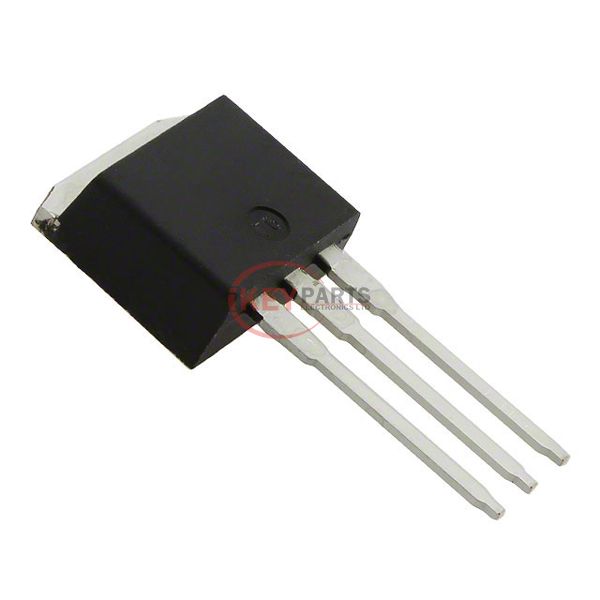

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRF820ALPBF

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRF820ALPBF
Description
MOSFET N-CH 500V 2.5A I2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF820ALPBF PDF
IRF820ALPBF Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds340 pF @ 25 V
FET Feature-
Power Dissipation (Max)50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI2PAK
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IRF820ALPBF, use the request quote form to request IRF820ALPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF820ALPBF. The price and lead time for IRF820ALPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF820ALPBF. We look forward to working with you to establish long-term relations of cooperation.
