CSD15571Q2

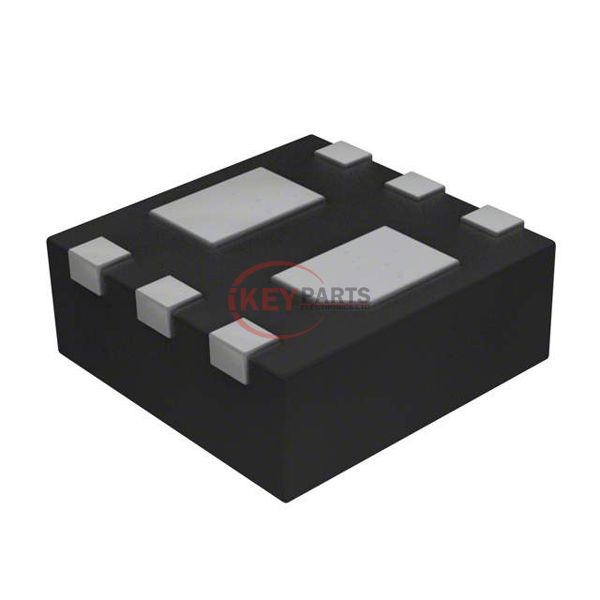

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments CSD15571Q2

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD15571Q2
Description
MOSFET N-CH 20V 22A 6SON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD15571Q2 PDF
CSD15571Q2 Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C22A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs15mOhm @ 5A, 10V
Vgs(th) (Max) @ Id1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds419 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.5W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-SON (2x2)
Package / Case6-WDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply CSD15571Q2, use the request quote form to request CSD15571Q2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD15571Q2. The price and lead time for CSD15571Q2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD15571Q2. We look forward to working with you to establish long-term relations of cooperation.
