NTLUS3A18PZTBG

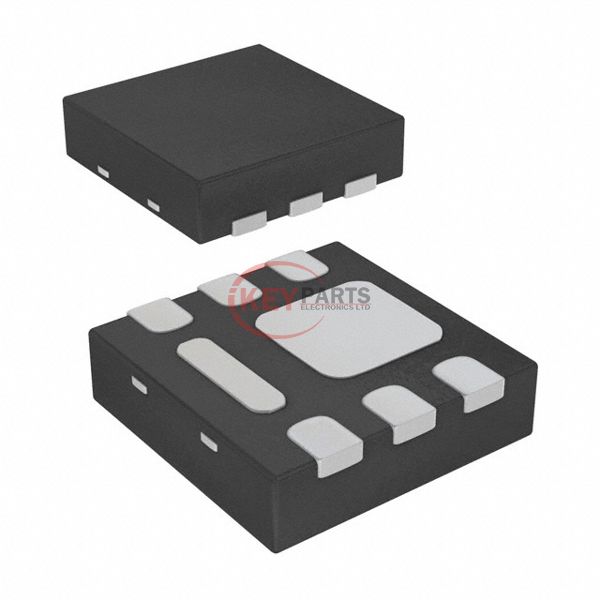

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTLUS3A18PZTBG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTLUS3A18PZTBG
Description
MOSFET P-CH 20V 5.1A 6UDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTLUS3A18PZTBG PDF
NTLUS3A18PZTBG Tech Specifications
SeriesµCool™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs18mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs28 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2240 pF @ 15 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (2x2)
Package / Case6-UDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply NTLUS3A18PZTBG, use the request quote form to request NTLUS3A18PZTBG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTLUS3A18PZTBG. The price and lead time for NTLUS3A18PZTBG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTLUS3A18PZTBG. We look forward to working with you to establish long-term relations of cooperation.
