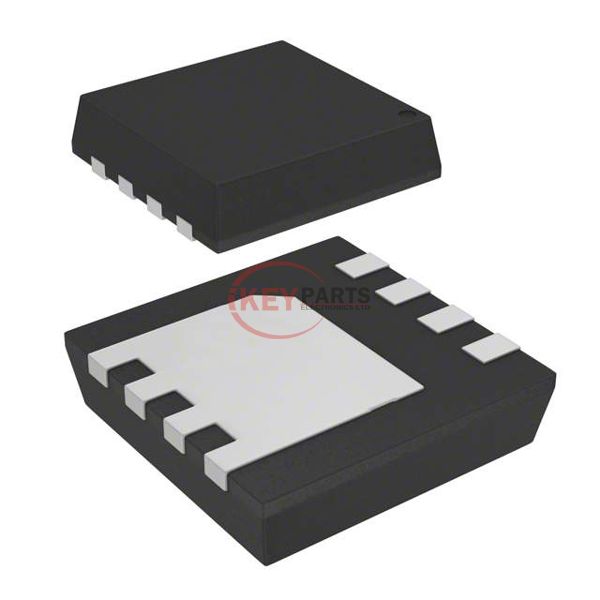

AON7421

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON7421

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON7421
Description
MOSFET P-CH 20V 30A/50A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON7421 PDF
In Stock
4000
AON7421 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C30A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs4.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs114 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds4550 pF @ 10 V
FET Feature-
Power Dissipation (Max)6.2W (Ta), 83W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN-EP (3.3x3.3)
Package / Case8-PowerWDFN
Request Quote Now
Request Quote Now

We can supply AON7421, use the request quote form to request AON7421 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON7421. The price and lead time for AON7421 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON7421. We look forward to working with you to establish long-term relations of cooperation.
