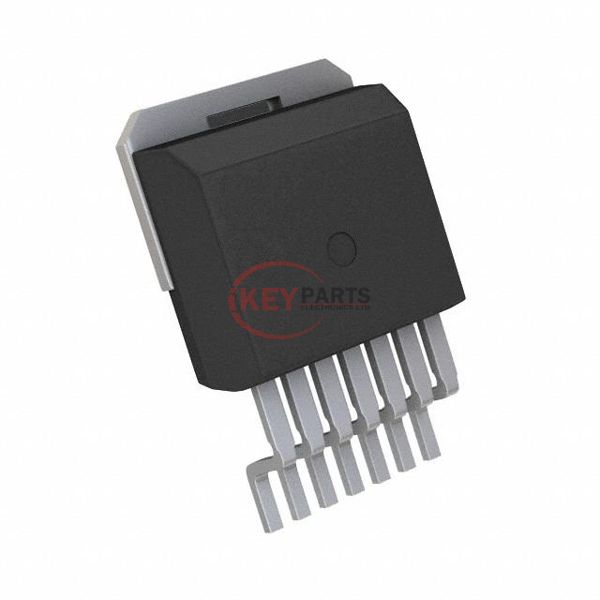

C3M0120090J-TR

Enlarger

Lmages are for reference only See Product Specitications

Wolfspeed - a Cree company C3M0120090J-TR

Manufacturer :
Wolfspeed - a Cree company
Mfr. Part # :
C3M0120090J-TR
Description
SICFET N-CH 900V 22A D2PAK-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
C3M0120090J-TR PDF
C3M0120090J-TR Tech Specifications
SeriesC3M™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)900 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs155mOhm @ 15A, 15V
Vgs(th) (Max) @ Id3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs17.3 nC @ 15 V
Vgs (Max)+18V, -8V
Input Capacitance (Ciss) (Max) @ Vds350 pF @ 600 V
FET Feature-
Power Dissipation (Max)83W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Request Quote Now
Request Quote Now

We can supply C3M0120090J-TR, use the request quote form to request C3M0120090J-TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number C3M0120090J-TR. The price and lead time for C3M0120090J-TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# C3M0120090J-TR. We look forward to working with you to establish long-term relations of cooperation.
