MCH3333A-TL-W

Enlarger

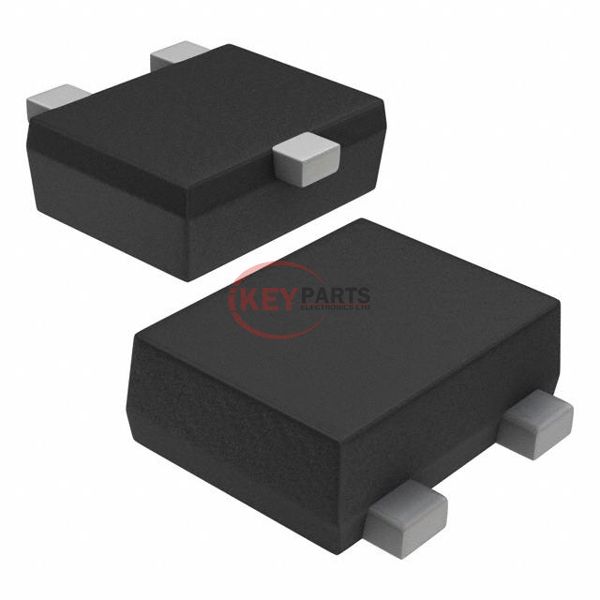

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor MCH3333A-TL-W

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
MCH3333A-TL-W
Description
MOSFET P-CH 30V 2A SC70FL/MCPH3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MCH3333A-TL-W PDF
MCH3333A-TL-W Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4V
Rds On (Max) @ Id, Vgs215mOhm @ 1A, 4V
Vgs(th) (Max) @ Id1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs2.8 nC @ 4 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds240 pF @ 10 V
FET Feature-
Power Dissipation (Max)900mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70FL/MCPH3
Package / Case3-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply MCH3333A-TL-W, use the request quote form to request MCH3333A-TL-W pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MCH3333A-TL-W. The price and lead time for MCH3333A-TL-W depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MCH3333A-TL-W. We look forward to working with you to establish long-term relations of cooperation.
