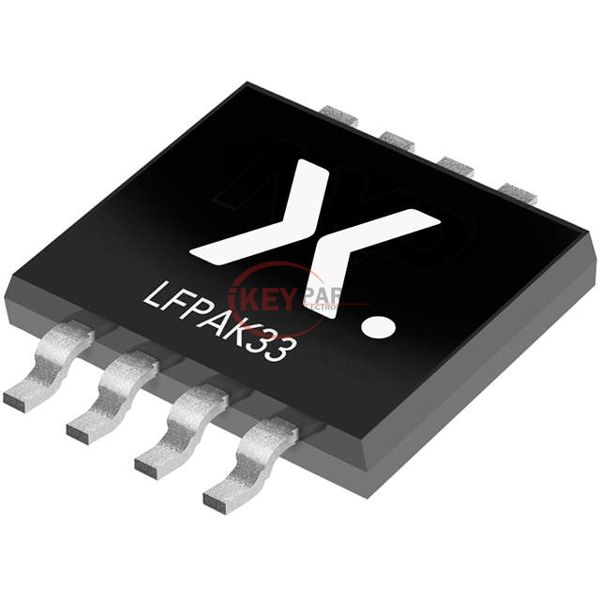

PSMN3R9-25MLC,115

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PSMN3R9-25MLC,115

Manufacturer :
Nexperia
Mfr. Part # :
PSMN3R9-25MLC,115
Description
MOSFET N-CH 25V 70A LFPAK33
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN3R9-25MLC,115 PDF
PSMN3R9-25MLC,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.15mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs21.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1524 pF @ 12.5 V
FET Feature-
Power Dissipation (Max)69W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK33
Package / CaseSOT-1210, 8-LFPAK33
Request Quote Now
Request Quote Now

We can supply PSMN3R9-25MLC,115, use the request quote form to request PSMN3R9-25MLC,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN3R9-25MLC,115. The price and lead time for PSMN3R9-25MLC,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN3R9-25MLC,115. We look forward to working with you to establish long-term relations of cooperation.
