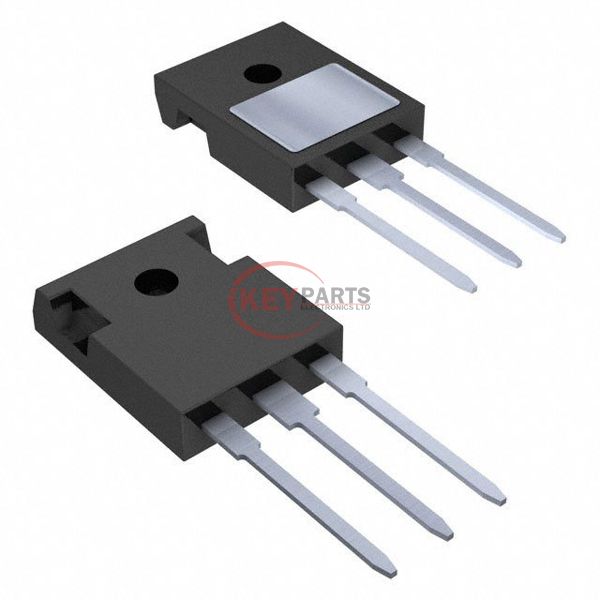

IXTR120P20T

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXTR120P20T

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXTR120P20T
Description
MOSFET P-CH 200V 90A ISOPLUS247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXTR120P20T PDF
IXTR120P20T Tech Specifications
SeriesTrenchP™
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs32mOhm @ 60A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs740 nC @ 10 V
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds73000 pF @ 25 V
FET Feature-
Power Dissipation (Max)595W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageISOPLUS247™
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply IXTR120P20T, use the request quote form to request IXTR120P20T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXTR120P20T. The price and lead time for IXTR120P20T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXTR120P20T. We look forward to working with you to establish long-term relations of cooperation.
