STSJ60NH3LL

Enlarger

Lmages are for reference only See Product Specitications

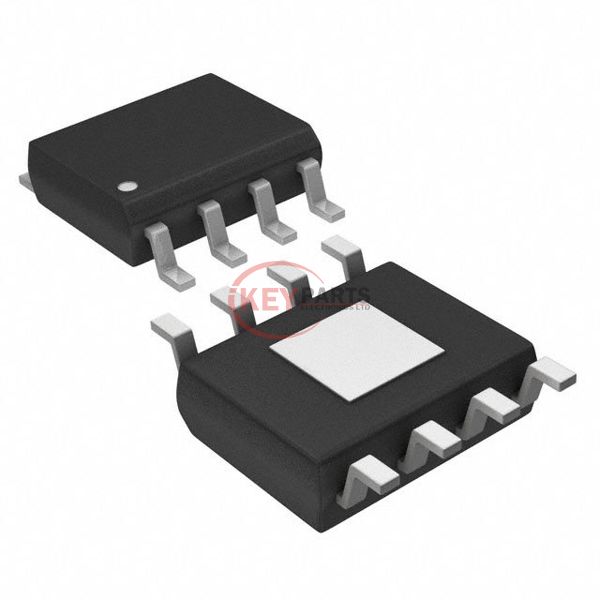

STMicroelectronics STSJ60NH3LL

Manufacturer :
STMicroelectronics
Mfr. Part # :
STSJ60NH3LL
Description
MOSFET N-CH 30V 60A 8SOIC
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STSJ60NH3LL PDF
In Stock
237
STSJ60NH3LL Tech Specifications
SeriesSTripFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5.7mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds1810 pF @ 25 V
FET Feature-
Power Dissipation (Max)3W (Ta), 50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOIC-EP
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Request Quote Now
Request Quote Now

We can supply STSJ60NH3LL, use the request quote form to request STSJ60NH3LL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STSJ60NH3LL. The price and lead time for STSJ60NH3LL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STSJ60NH3LL. We look forward to working with you to establish long-term relations of cooperation.
