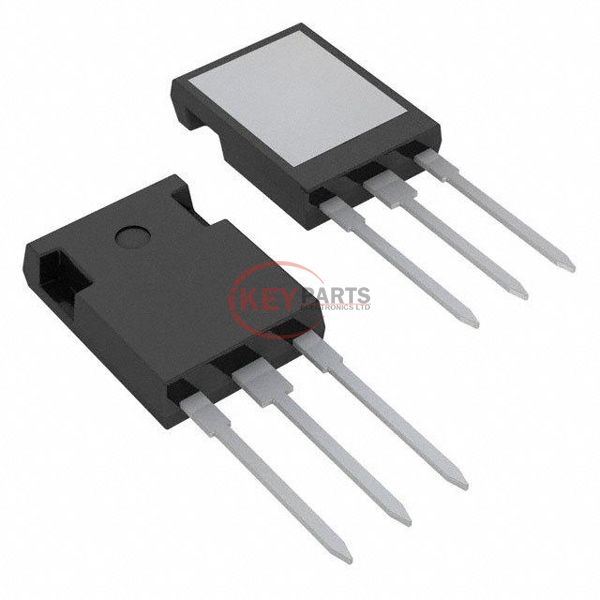

IXFR20N120P

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXFR20N120P

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXFR20N120P
Description
MOSFET N-CH 1200V 13A ISOPLUS247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXFR20N120P PDF
IXFR20N120P Tech Specifications
SeriesHiPerFET™, PolarP2™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs630mOhm @ 10A, 10V
Vgs(th) (Max) @ Id6.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs193 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds11100 pF @ 25 V
FET Feature-
Power Dissipation (Max)290W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageISOPLUS247™
Package / CaseISOPLUS247™
Request Quote Now
Request Quote Now

We can supply IXFR20N120P, use the request quote form to request IXFR20N120P pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXFR20N120P. The price and lead time for IXFR20N120P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXFR20N120P. We look forward to working with you to establish long-term relations of cooperation.
