IRLHS6242TRPBF

Enlarger

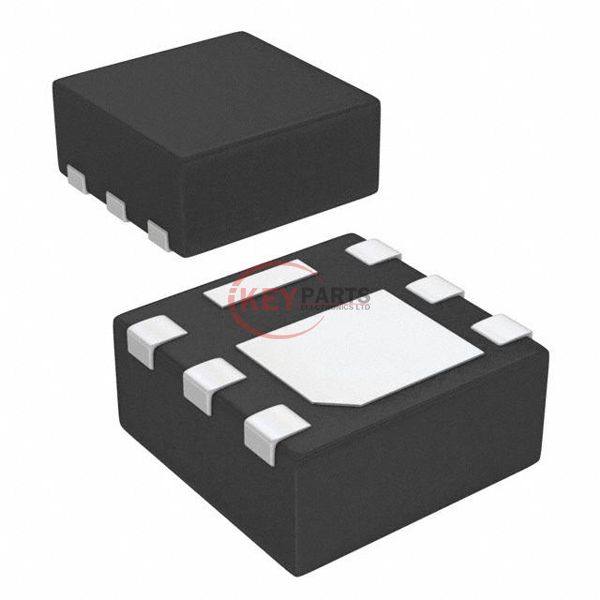

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRLHS6242TRPBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRLHS6242TRPBF
Description
MOSFET N-CH 20V 10A/12A 6PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLHS6242TRPBF PDF
In Stock
80209
IRLHS6242TRPBF Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C10A (Ta), 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs11.7mOhm @ 8.5A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1110 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.98W (Ta), 9.6W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerVDFN
Request Quote Now
Request Quote Now

We can supply IRLHS6242TRPBF, use the request quote form to request IRLHS6242TRPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLHS6242TRPBF. The price and lead time for IRLHS6242TRPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLHS6242TRPBF. We look forward to working with you to establish long-term relations of cooperation.
