PMZB150UNEYL

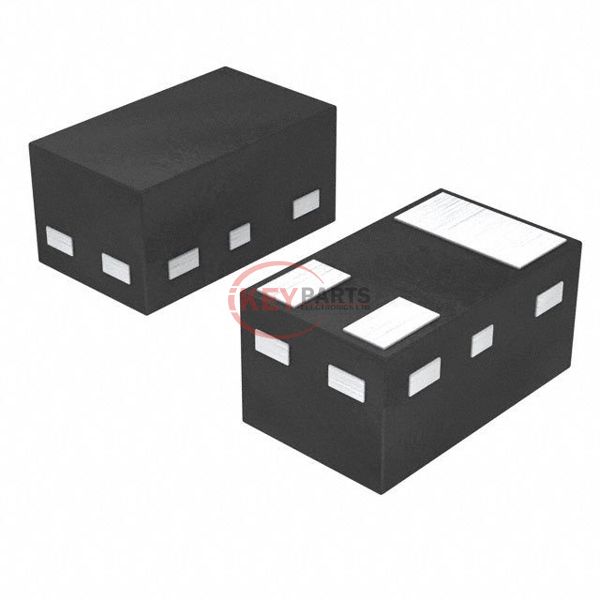

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PMZB150UNEYL

Manufacturer :
Nexperia
Mfr. Part # :
PMZB150UNEYL
Description
MOSFET N-CH 20V 1.5A DFN1006B-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMZB150UNEYL PDF
PMZB150UNEYL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs200mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.6 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds93 pF @ 10 V
FET Feature-
Power Dissipation (Max)350mW (Ta), 6.25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006B-3
Package / Case3-XFDFN
Request Quote Now
Request Quote Now

We can supply PMZB150UNEYL, use the request quote form to request PMZB150UNEYL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMZB150UNEYL. The price and lead time for PMZB150UNEYL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMZB150UNEYL. We look forward to working with you to establish long-term relations of cooperation.
