IRL3103PBF

Enlarger

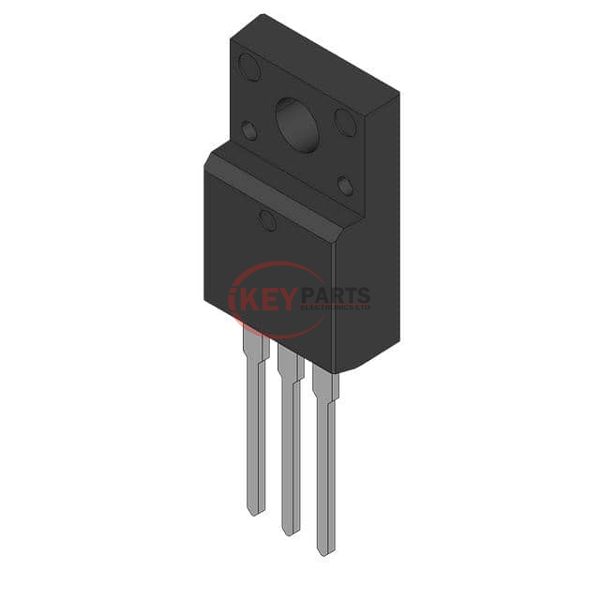

Lmages are for reference only See Product Specitications

Rochester Electronics IRL3103PBF

Manufacturer :
Rochester Electronics
Mfr. Part # :
IRL3103PBF
Description
HEXFET POWER MOSFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRL3103PBF PDF
In Stock
3160
IRL3103PBF Tech Specifications
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C64A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs12mOhm @ 34A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds1.65 pF @ 25 V
FET Feature-
Power Dissipation (Max)94W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply IRL3103PBF, use the request quote form to request IRL3103PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRL3103PBF. The price and lead time for IRL3103PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRL3103PBF. We look forward to working with you to establish long-term relations of cooperation.
