NP180N04TUK-E1-AY

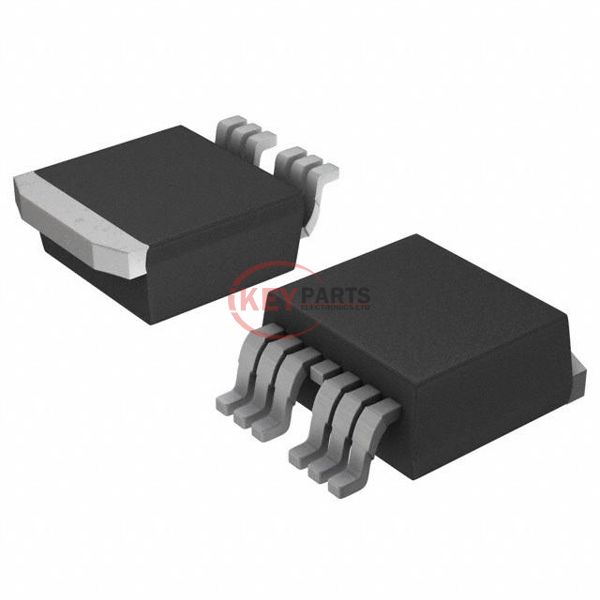

Enlarger

Lmages are for reference only See Product Specitications

Renesas Electronics America NP180N04TUK-E1-AY

Manufacturer :
Renesas Electronics America
Mfr. Part # :
NP180N04TUK-E1-AY
Description
MOSFET N-CH 40V 180A TO263-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NP180N04TUK-E1-AY PDF
In Stock
998
NP180N04TUK-E1-AY Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.05mOhm @ 90A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs297 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds15750 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 348W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263-7
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
Request Quote Now
Request Quote Now

We can supply NP180N04TUK-E1-AY, use the request quote form to request NP180N04TUK-E1-AY pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NP180N04TUK-E1-AY. The price and lead time for NP180N04TUK-E1-AY depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NP180N04TUK-E1-AY. We look forward to working with you to establish long-term relations of cooperation.
