FDB0630N1507L

Enlarger

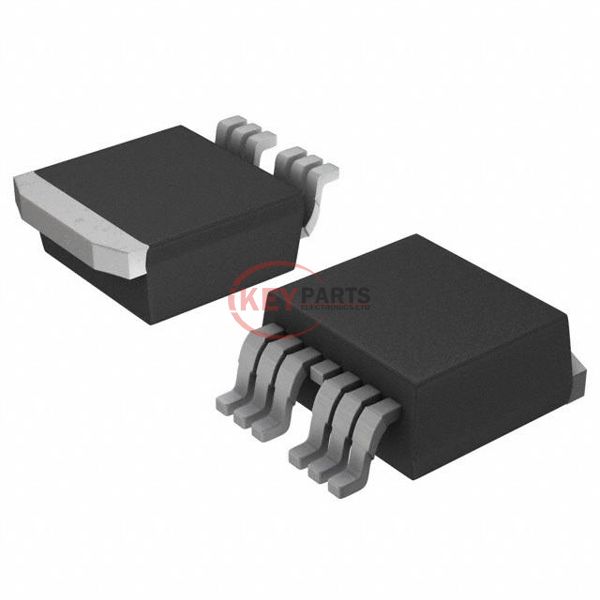

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDB0630N1507L

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDB0630N1507L
Description
MOSFET N-CH 150V 130A TO263-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDB0630N1507L PDF
FDB0630N1507L Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C130A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs6.4mOhm @ 18A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs135 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds9895 pF @ 75 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 300W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263-7
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
Request Quote Now
Request Quote Now

We can supply FDB0630N1507L, use the request quote form to request FDB0630N1507L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDB0630N1507L. The price and lead time for FDB0630N1507L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDB0630N1507L. We look forward to working with you to establish long-term relations of cooperation.
