| Series | - | |
| Package | Bulk | |
| Part Status | Obsolete | |
| FET Type | P-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 20 V | |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | - | |
| Rds On (Max) @ Id, Vgs | 165mOhm @ 1A, 4V | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V | |
| Vgs (Max) | - | |
| Input Capacitance (Ciss) (Max) @ Vds | 410 pF @ 10 V | |
| FET Feature | - | |
| Power Dissipation (Max) | 800mW (Ta) | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |

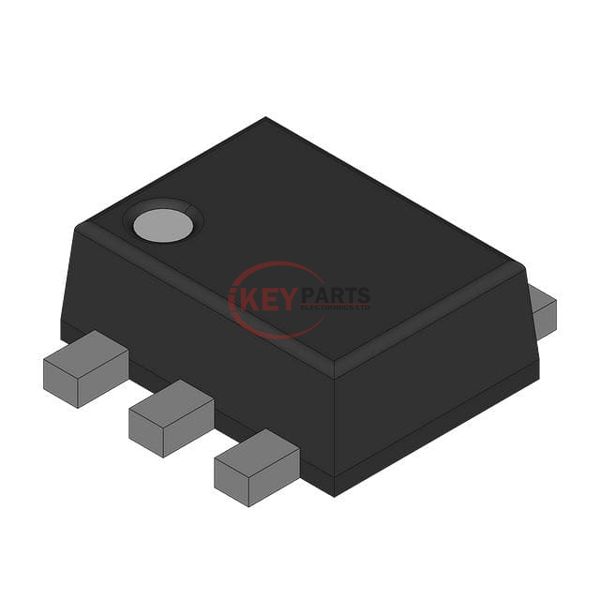

| Supplier Device Package | 6-SCH | |
| Package / Case | 6-SMD, Flat Leads |
We can supply SCH1302-TL-E, use the request quote form to request SCH1302-TL-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SCH1302-TL-E. The price and lead time for SCH1302-TL-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SCH1302-TL-E. We look forward to working with you to establish long-term relations of cooperation.
