TK4R3E06PL,S1X

Enlarger

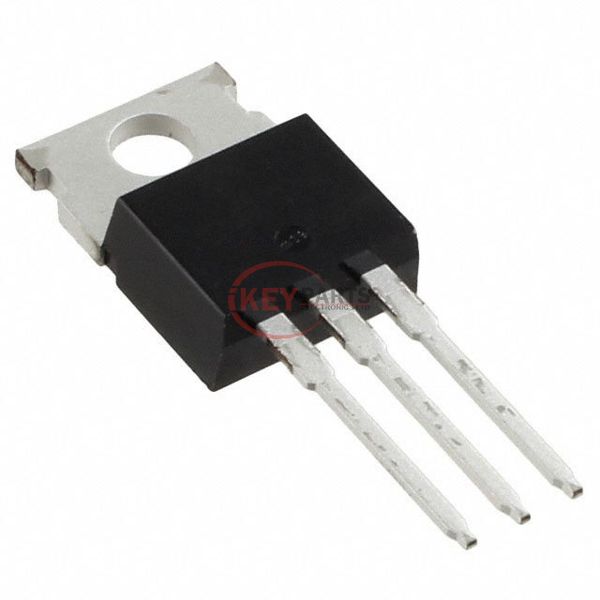

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TK4R3E06PL,S1X

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TK4R3E06PL,S1X
Description
MOSFET N-CH 60V 80A TO220
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TK4R3E06PL,S1X PDF
In Stock
1324
TK4R3E06PL,S1X Tech Specifications
SeriesU-MOSIX-H
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.2mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id2.5V @ 500µA
Gate Charge (Qg) (Max) @ Vgs48.2 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3280 pF @ 30 V
FET Feature-
Power Dissipation (Max)87W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply TK4R3E06PL,S1X, use the request quote form to request TK4R3E06PL,S1X pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TK4R3E06PL,S1X. The price and lead time for TK4R3E06PL,S1X depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TK4R3E06PL,S1X. We look forward to working with you to establish long-term relations of cooperation.
