DMP2075UVT-13

Enlarger

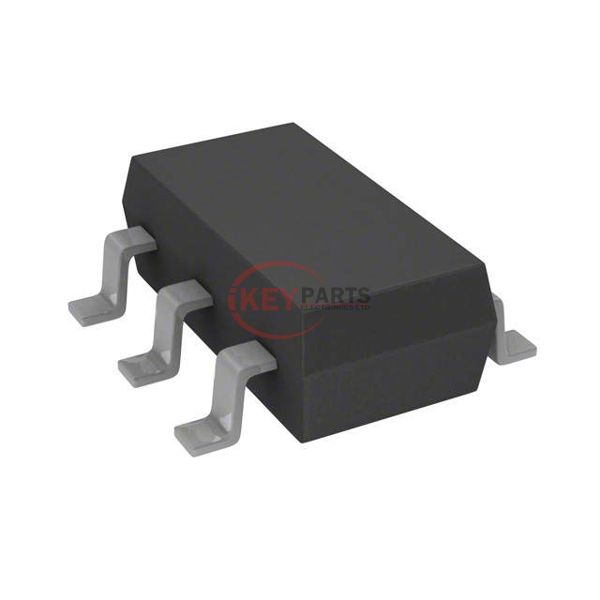

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMP2075UVT-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMP2075UVT-13
Description
MOSFET P-CH 20V 3.8A TSOT26 T&R
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMP2075UVT-13 PDF
In Stock
904
DMP2075UVT-13 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs75mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.8 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds642 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTSOT-26
Package / CaseSOT-23-6 Thin, TSOT-23-6
Request Quote Now
Request Quote Now

We can supply DMP2075UVT-13, use the request quote form to request DMP2075UVT-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMP2075UVT-13. The price and lead time for DMP2075UVT-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMP2075UVT-13. We look forward to working with you to establish long-term relations of cooperation.
