TT8U2TR

Enlarger

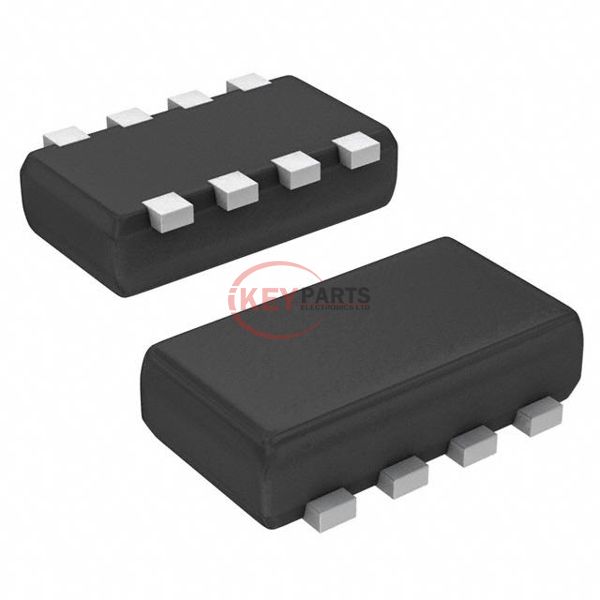

Lmages are for reference only See Product Specitications

ROHM Semiconductor TT8U2TR

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
TT8U2TR
Description
MOSFET P-CH 20V 2.4A 8TSST
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TT8U2TR PDF
TT8U2TR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs105mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs6.7 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds850 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)1.25W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-TSST
Package / Case8-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply TT8U2TR, use the request quote form to request TT8U2TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TT8U2TR. The price and lead time for TT8U2TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TT8U2TR. We look forward to working with you to establish long-term relations of cooperation.
