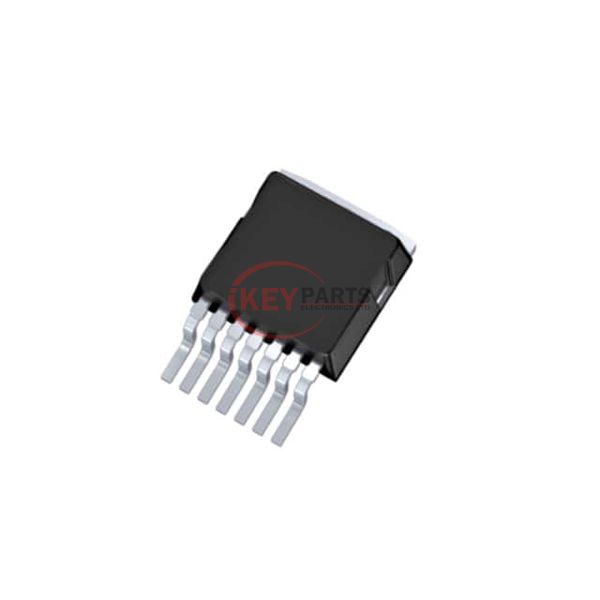

IMBG120R045M1HXTMA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IMBG120R045M1HXTMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IMBG120R045M1HXTMA1
Description
TRANS SJT N-CH 1.2KV 47A TO263
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IMBG120R045M1HXTMA1 PDF
In Stock
424
IMBG120R045M1HXTMA1 Tech Specifications
SeriesCoolSiC™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologySiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)1.2 kV
Current - Continuous Drain (Id) @ 25°C47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs63mOhm @ 16A, 18V
Vgs(th) (Max) @ Id5.7V @ 7.5mA
Gate Charge (Qg) (Max) @ Vgs46 nC @ 18 V
Vgs (Max)+18V, -15V
Input Capacitance (Ciss) (Max) @ Vds1.527 nF @ 800 V
FET FeatureStandard
Power Dissipation (Max)227W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7-12
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Request Quote Now
Request Quote Now

We can supply IMBG120R045M1HXTMA1, use the request quote form to request IMBG120R045M1HXTMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IMBG120R045M1HXTMA1. The price and lead time for IMBG120R045M1HXTMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IMBG120R045M1HXTMA1. We look forward to working with you to establish long-term relations of cooperation.
