PHD9NQ20T,118

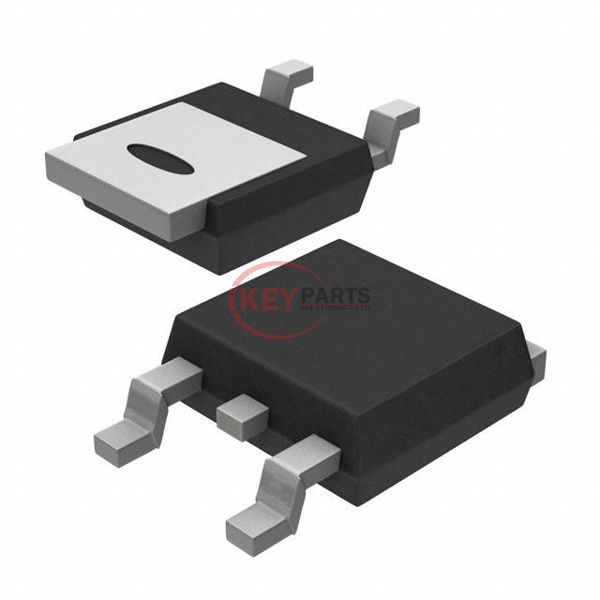

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PHD9NQ20T,118

Manufacturer :
Nexperia
Mfr. Part # :
PHD9NQ20T,118
Description
MOSFET N-CH 200V 8.7A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PHD9NQ20T,118 PDF
PHD9NQ20T,118 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C8.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs400mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds959 pF @ 25 V
FET Feature-
Power Dissipation (Max)88W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply PHD9NQ20T,118, use the request quote form to request PHD9NQ20T,118 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PHD9NQ20T,118. The price and lead time for PHD9NQ20T,118 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PHD9NQ20T,118. We look forward to working with you to establish long-term relations of cooperation.
