STV300NH02L

Enlarger

Lmages are for reference only See Product Specitications

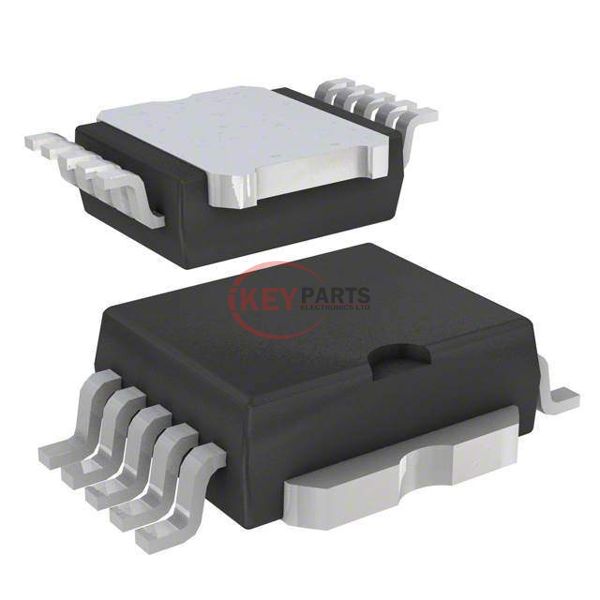

STMicroelectronics STV300NH02L

Manufacturer :
STMicroelectronics
Mfr. Part # :
STV300NH02L
Description
MOSFET N-CH 24V 200A 10POWERSO
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STV300NH02L PDF
STV300NH02L Tech Specifications
SeriesSTripFET™ III
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)24 V
Current - Continuous Drain (Id) @ 25°C200A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V, 5V
Rds On (Max) @ Id, Vgs1mOhm @ 80A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs109 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7055 pF @ 15 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-PowerSO
Package / CasePowerSO-10 Exposed Bottom Pad
Request Quote Now
Request Quote Now

We can supply STV300NH02L, use the request quote form to request STV300NH02L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STV300NH02L. The price and lead time for STV300NH02L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STV300NH02L. We look forward to working with you to establish long-term relations of cooperation.
