DMN10H120SE-13

Enlarger

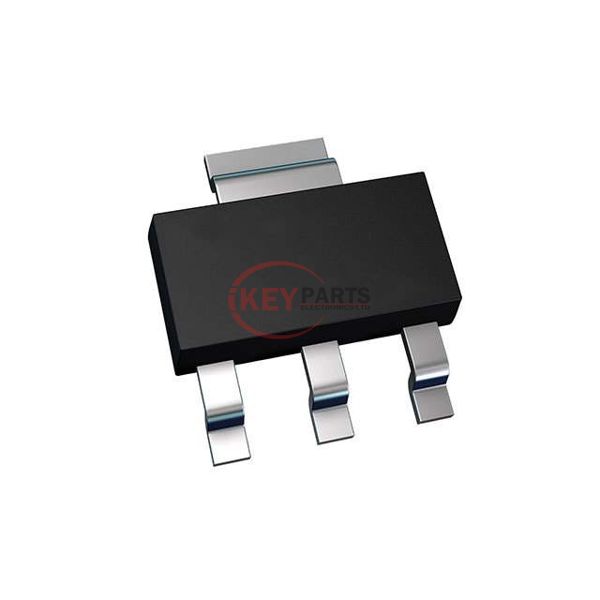

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMN10H120SE-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN10H120SE-13
Description
MOSFET N-CH 100V 3.6A SOT223
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN10H120SE-13 PDF
DMN10H120SE-13 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs110mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds549 pF @ 50 V
FET Feature-
Power Dissipation (Max)1.3W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
Request Quote Now
Request Quote Now

We can supply DMN10H120SE-13, use the request quote form to request DMN10H120SE-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN10H120SE-13. The price and lead time for DMN10H120SE-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN10H120SE-13. We look forward to working with you to establish long-term relations of cooperation.
