TPH3206PD

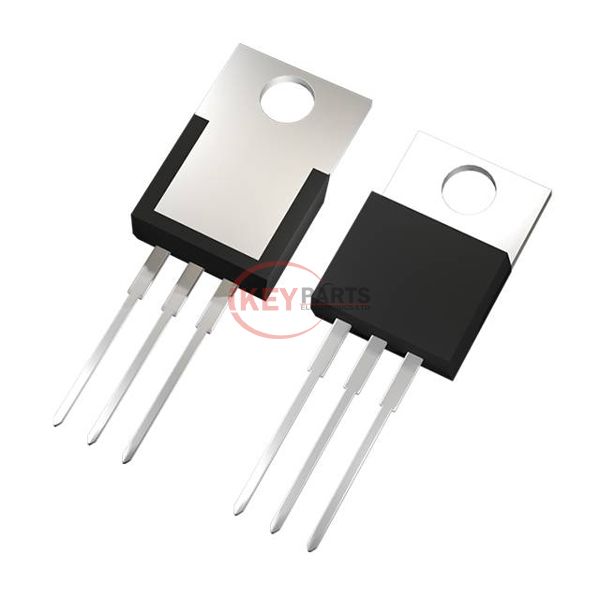

Enlarger

Lmages are for reference only See Product Specitications

Transphorm TPH3206PD

Manufacturer :
Transphorm
Mfr. Part # :
TPH3206PD
Description
GANFET N-CH 600V 17A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPH3206PD PDF
TPH3206PD Tech Specifications
Series-
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C17A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs180mOhm @ 11A, 8V
Vgs(th) (Max) @ Id2.6V @ 500µA
Gate Charge (Qg) (Max) @ Vgs9.3 nC @ 4.5 V
Vgs (Max)±18V
Input Capacitance (Ciss) (Max) @ Vds760 pF @ 480 V
FET Feature-
Power Dissipation (Max)96W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply TPH3206PD, use the request quote form to request TPH3206PD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPH3206PD. The price and lead time for TPH3206PD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPH3206PD. We look forward to working with you to establish long-term relations of cooperation.
