CSD16340Q3

Enlarger

Lmages are for reference only See Product Specitications

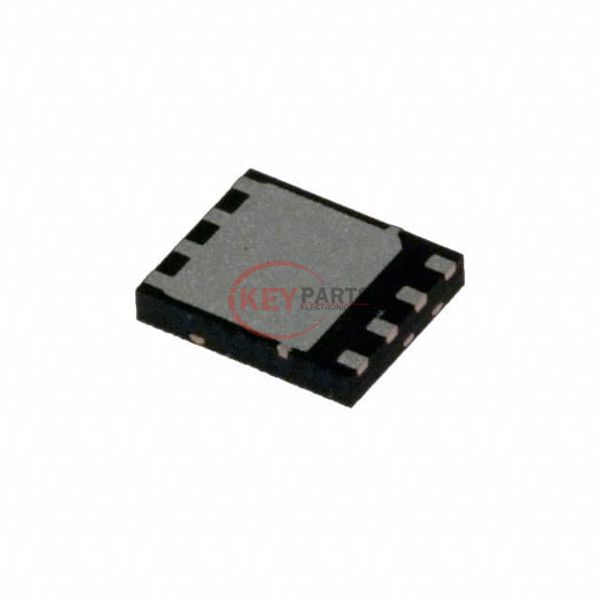

Texas Instruments CSD16340Q3

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD16340Q3
Description
MOSFET N-CH 25V 21A/60A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD16340Q3 PDF
CSD16340Q3 Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C21A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 8V
Rds On (Max) @ Id, Vgs4.5mOhm @ 20A, 8V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.2 nC @ 4.5 V
Vgs (Max)+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds1350 pF @ 12.5 V
FET Feature-
Power Dissipation (Max)3W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON-CLIP (3.3x3.3)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply CSD16340Q3, use the request quote form to request CSD16340Q3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD16340Q3. The price and lead time for CSD16340Q3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD16340Q3. We look forward to working with you to establish long-term relations of cooperation.
