DMN3016LFDE-7

Enlarger

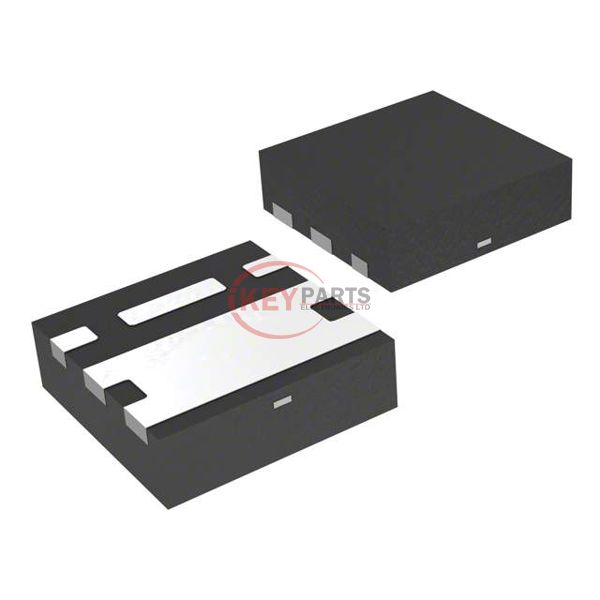

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMN3016LFDE-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN3016LFDE-7
Description
MOSFET N-CH 30V 10A 6UDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN3016LFDE-7 PDF
In Stock
2966
DMN3016LFDE-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs12mOhm @ 11A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25.1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1415 pF @ 15 V
FET Feature-
Power Dissipation (Max)730mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN2020-6 (Type E)
Package / Case6-PowerUDFN
Request Quote Now
Request Quote Now

We can supply DMN3016LFDE-7, use the request quote form to request DMN3016LFDE-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN3016LFDE-7. The price and lead time for DMN3016LFDE-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN3016LFDE-7. We look forward to working with you to establish long-term relations of cooperation.
