3LN01M-TL-E

Enlarger

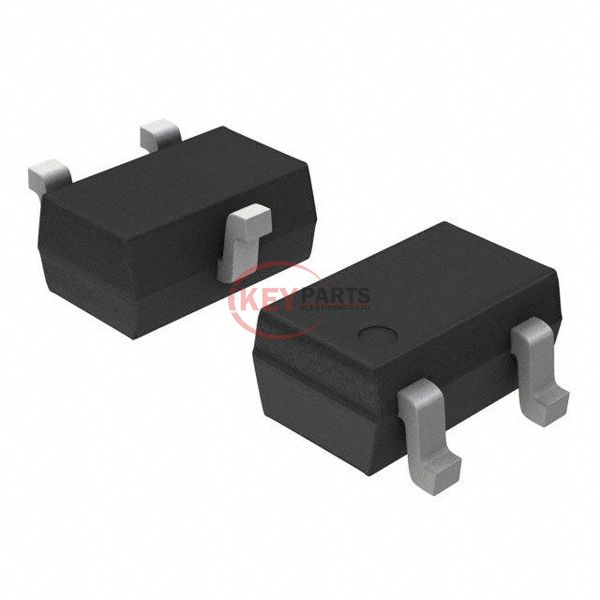

Lmages are for reference only See Product Specitications

Rochester Electronics 3LN01M-TL-E

Manufacturer :
Rochester Electronics
Mfr. Part # :
3LN01M-TL-E
Description
N-CHANNEL, MOSFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
3LN01M-TL-E PDF
In Stock
9000
3LN01M-TL-E Tech Specifications
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C150mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4V
Rds On (Max) @ Id, Vgs3.7Ohm @ 80mA, 4V
Vgs(th) (Max) @ Id1.3V @ 100µA
Gate Charge (Qg) (Max) @ Vgs1.58 nC @ 10 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds7 pF @ 10 V
FET Feature-
Power Dissipation (Max)150mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70/MCPH3
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply 3LN01M-TL-E, use the request quote form to request 3LN01M-TL-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 3LN01M-TL-E. The price and lead time for 3LN01M-TL-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 3LN01M-TL-E. We look forward to working with you to establish long-term relations of cooperation.
