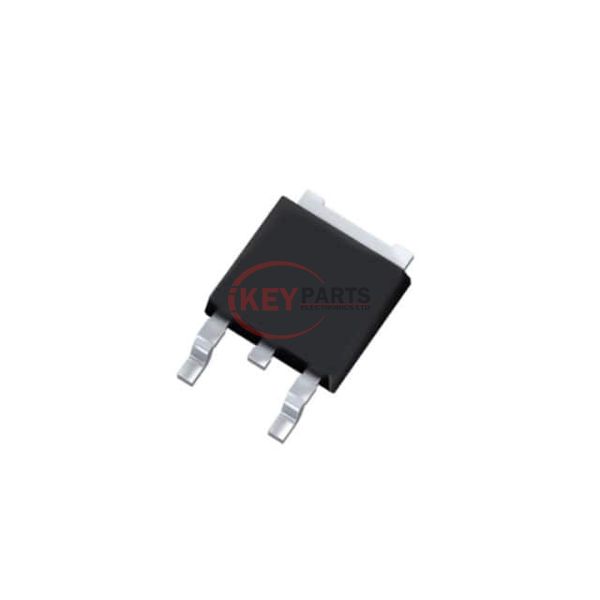

IPD70N12S311ATMA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPD70N12S311ATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPD70N12S311ATMA1
Description
MOSFET N-CH 120V 70A TO252-31
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPD70N12S311ATMA1 PDF
In Stock
823
IPD70N12S311ATMA1 Tech Specifications
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)120 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs11.1mOhm @ 70A, 10V
Vgs(th) (Max) @ Id4V @ 83µA
Gate Charge (Qg) (Max) @ Vgs65 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4355 pF @ 25 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-11
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply IPD70N12S311ATMA1, use the request quote form to request IPD70N12S311ATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPD70N12S311ATMA1. The price and lead time for IPD70N12S311ATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPD70N12S311ATMA1. We look forward to working with you to establish long-term relations of cooperation.
