APT13F120B

Enlarger

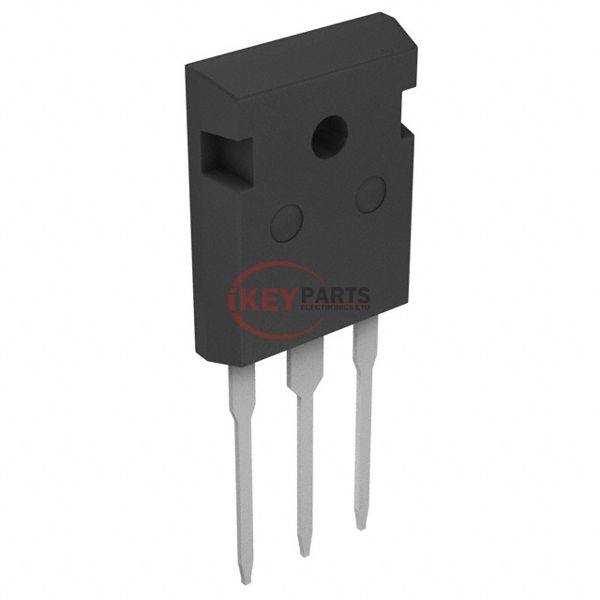

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT13F120B

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT13F120B
Description
MOSFET N-CH 1200V 14A TO247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT13F120B PDF
APT13F120B Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.4Ohm @ 7A, 10V
Vgs(th) (Max) @ Id5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs145 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds4765 pF @ 25 V
FET Feature-
Power Dissipation (Max)625W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247 [B]
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply APT13F120B, use the request quote form to request APT13F120B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT13F120B. The price and lead time for APT13F120B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT13F120B. We look forward to working with you to establish long-term relations of cooperation.
