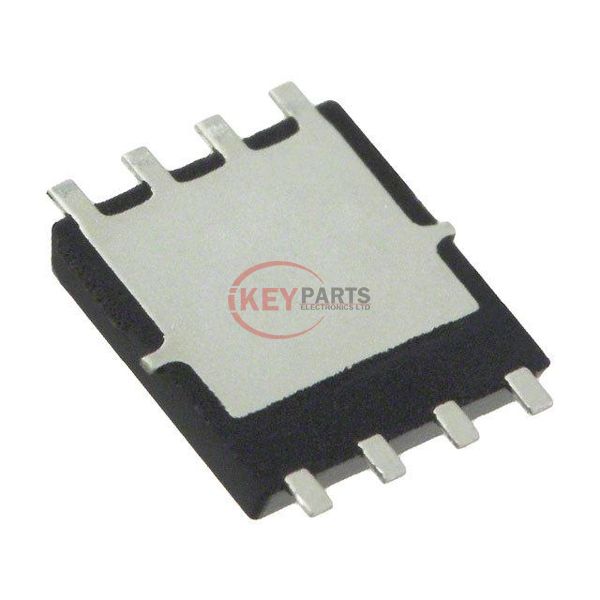

Toshiba Electronic Devices and Storage Corporation TPN2010FNH,L1Q

Manufacturer :: Toshiba Electronic Devices and Storage Corporation

Mfr. Part # :: TPN2010FNH,L1Q

Description: MOSFET N-CH 250V 5.6A 8TSON

Catalog: Transistors - FETs, MOSFETs - Single

Lead Free Status / RoHS Status: Contains lead / RoHS non-compliant

DataSheet: TPN2010FNH,L1Q PDF

TPN2010FNH,L1Q Tech Specifications

Series		U-MOSVIII-H
Package		Tape & Reel (TR)Cut Tape (CT)
Part Status		Active
FET Type		N-Channel
Technology		MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)		250 V
Current - Continuous Drain (Id) @ 25°C		5.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)		10V
Rds On (Max) @ Id, Vgs		198mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id		4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs		7 nC @ 10 V
Vgs (Max)		±20V
Input Capacitance (Ciss) (Max) @ Vds		600 pF @ 100 V
FET Feature		-
Power Dissipation (Max)		700mW (Ta), 39W (Tc)
Operating Temperature		150°C (TJ)
Mounting Type		Surface Mount
Supplier Device Package		8-TSON Advance (3.3x3.3)
Package / Case		8-PowerVDFN

Request Quote Now

We can supply TPN2010FNH,L1Q, use the request quote form to request TPN2010FNH,L1Q pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPN2010FNH,L1Q. The price and lead time for TPN2010FNH,L1Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPN2010FNH,L1Q. We look forward to working with you to establish long-term relations of cooperation.
