ZVN4525ZTA

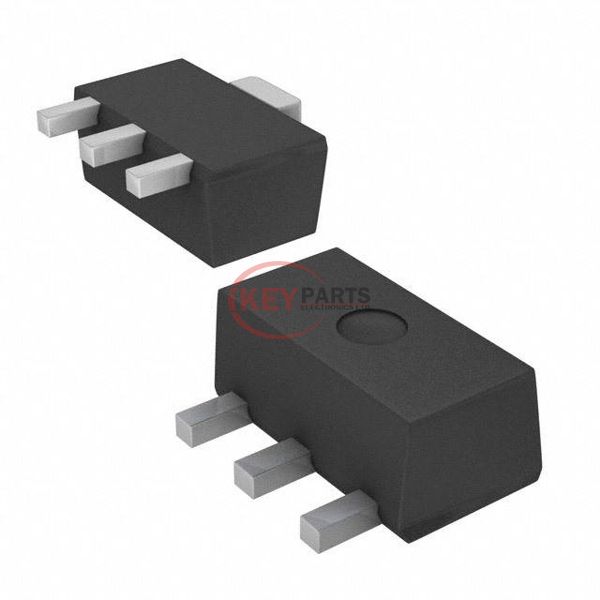

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZVN4525ZTA

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZVN4525ZTA
Description
MOSFET N-CH 250V 240MA SOT89-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZVN4525ZTA PDF
ZVN4525ZTA Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)250 V
Current - Continuous Drain (Id) @ 25°C240mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.4V, 10V
Rds On (Max) @ Id, Vgs8.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id1.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs3.65 nC @ 10 V
Vgs (Max)±40V
Input Capacitance (Ciss) (Max) @ Vds72 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-89-3
Package / CaseTO-243AA
Request Quote Now
Request Quote Now

We can supply ZVN4525ZTA, use the request quote form to request ZVN4525ZTA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZVN4525ZTA. The price and lead time for ZVN4525ZTA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZVN4525ZTA. We look forward to working with you to establish long-term relations of cooperation.
