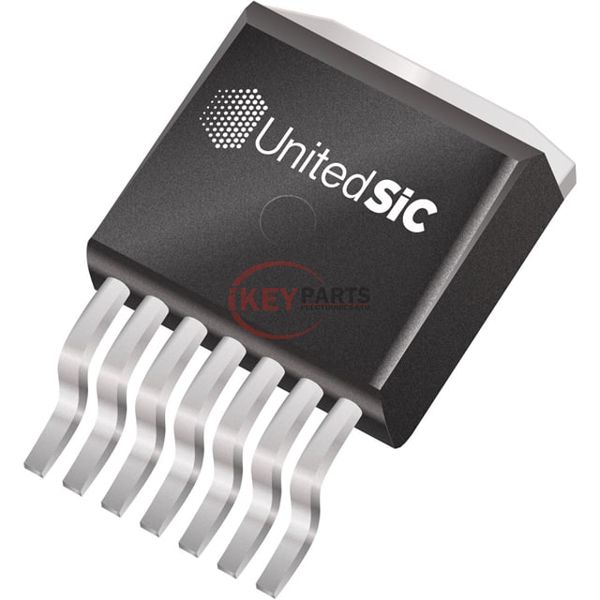

UF3C120080B7S

Enlarger

Lmages are for reference only See Product Specitications

UnitedSiC UF3C120080B7S

Manufacturer :
UnitedSiC
Mfr. Part # :
UF3C120080B7S
Description
SICFET P-CH 1200V 28.8A D2PAK-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UF3C120080B7S PDF
UF3C120080B7S Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C28.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs105mOhm @ 20A, 12V
Vgs(th) (Max) @ Id6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 12 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds754 pF @ 100 V
FET Feature-
Power Dissipation (Max)190W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Request Quote Now
Request Quote Now

We can supply UF3C120080B7S, use the request quote form to request UF3C120080B7S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UF3C120080B7S. The price and lead time for UF3C120080B7S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UF3C120080B7S. We look forward to working with you to establish long-term relations of cooperation.
