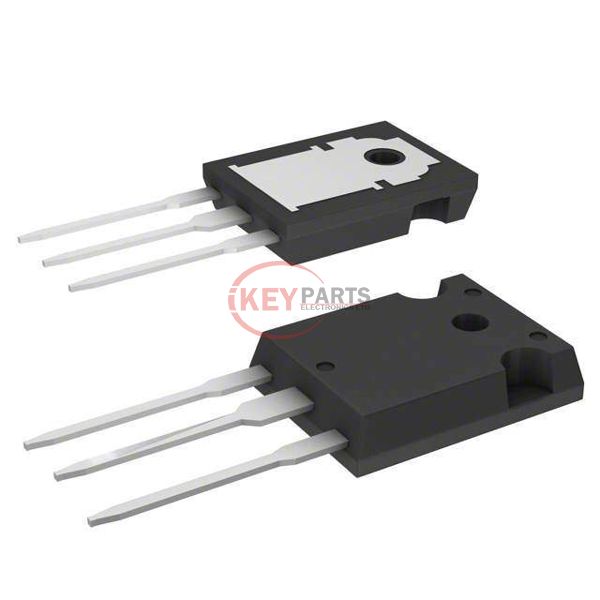

STW9N80K5

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STW9N80K5

Manufacturer :
STMicroelectronics
Mfr. Part # :
STW9N80K5
Description
MOSFET N-CHANNEL 800V 7A TO247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STW9N80K5 PDF
STW9N80K5 Tech Specifications
SeriesMDmesh™ K5
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs900mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds340 pF @ 100 V
FET Feature-
Power Dissipation (Max)110W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply STW9N80K5, use the request quote form to request STW9N80K5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STW9N80K5. The price and lead time for STW9N80K5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STW9N80K5. We look forward to working with you to establish long-term relations of cooperation.
