2SK3814-AZ

Enlarger

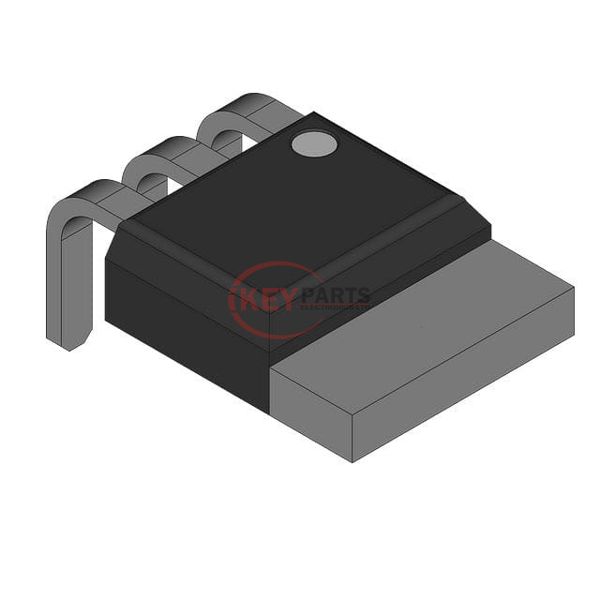

Lmages are for reference only See Product Specitications

Rochester Electronics 2SK3814-AZ

Manufacturer :
Rochester Electronics
Mfr. Part # :
2SK3814-AZ
Description
MOSFET N-CH 60V 60A TO251
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SK3814-AZ PDF
In Stock
6430
2SK3814-AZ Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs8.7mOhm @ 30A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs95 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds5450 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta), 84W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-251 (MP-3)
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
Request Quote Now
Request Quote Now

We can supply 2SK3814-AZ, use the request quote form to request 2SK3814-AZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SK3814-AZ. The price and lead time for 2SK3814-AZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SK3814-AZ. We look forward to working with you to establish long-term relations of cooperation.
