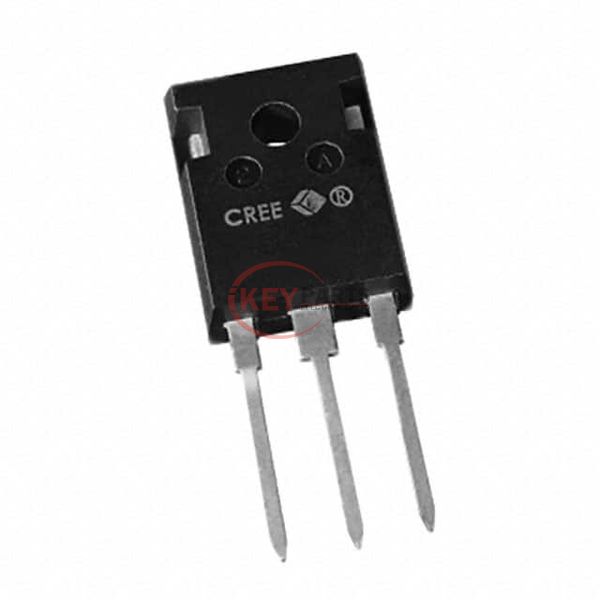

C3M0040120D

Enlarger

Lmages are for reference only See Product Specitications

Wolfspeed - a Cree company C3M0040120D

Manufacturer :
Wolfspeed - a Cree company
Mfr. Part # :
C3M0040120D
Description
1200V 40MOHM SIC MOSFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
C3M0040120D PDF
C3M0040120D Tech Specifications
SeriesC3M™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C66A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs53.5mOhm @ 33.3A, 15V
Vgs(th) (Max) @ Id3.6V @ 9.5mA
Gate Charge (Qg) (Max) @ Vgs101 nC @ 15 V
Vgs (Max)+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds2900 pF @ 1000 V
FET Feature-
Power Dissipation (Max)326W (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply C3M0040120D, use the request quote form to request C3M0040120D pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number C3M0040120D. The price and lead time for C3M0040120D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# C3M0040120D. We look forward to working with you to establish long-term relations of cooperation.
