NTE5526

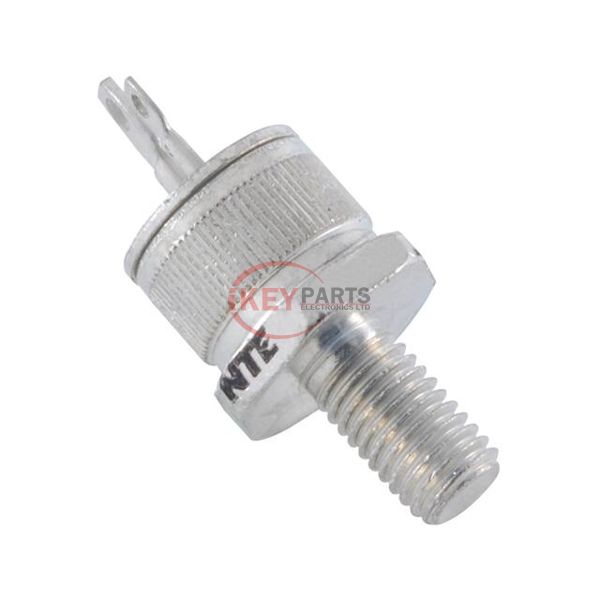

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE5526

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5526
Description
SCR 300V 25A TO48
Catalog
Thyristors - SCRs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5526 PDF
NTE5526 Tech Specifications
Series-
PackageBag
Part StatusActive
Voltage - Off State300 V
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)40 mA
Voltage - On State (Vtm) (Max)1.7 V
Current - On State (It (AV)) (Max)16 A
Current - On State (It (RMS)) (Max)25 A
Current - Hold (Ih) (Max)-
Current - Off State (Max)-
Current - Non Rep. Surge 50, 60Hz (Itsm)150A @ 60Hz
SCR TypeStandard Recovery
Operating Temperature-65°C ~ 125°C (TJ)
Mounting TypeStud Mount
Package / CaseTO-208AA, TO-48-3, Stud
Supplier Device PackageTO-48
Request Quote Now
Request Quote Now

We can supply NTE5526, use the request quote form to request NTE5526 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5526. The price and lead time for NTE5526 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5526. We look forward to working with you to establish long-term relations of cooperation.
