NTE5540

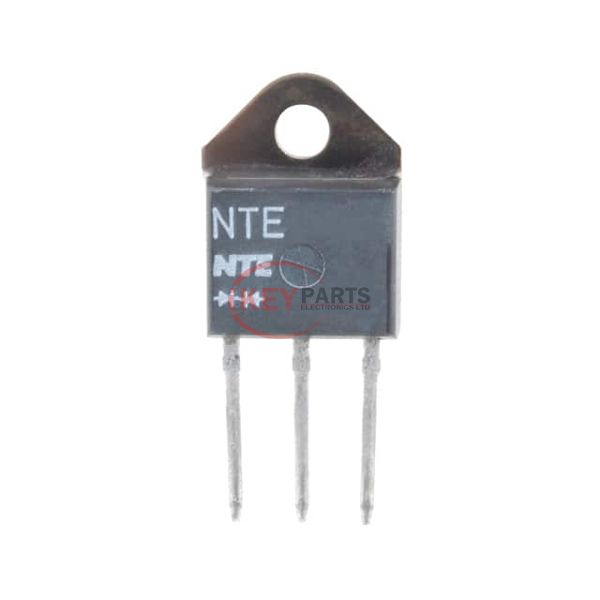

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE5540

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5540
Description
SCR 800V 55A TO218
Catalog
Thyristors - SCRs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5540 PDF
In Stock
700
NTE5540 Tech Specifications
Series-
PackageBag
Part StatusActive
Voltage - Off State800 V
Voltage - Gate Trigger (Vgt) (Max)1.5 V
Current - Gate Trigger (Igt) (Max)40 mA
Voltage - On State (Vtm) (Max)1.8 V
Current - On State (It (AV)) (Max)35 A
Current - On State (It (RMS)) (Max)55 A
Current - Hold (Ih) (Max)60 mA
Current - Off State (Max)20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)550A, 650A
SCR TypeStandard Recovery
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-218-3
Supplier Device PackageTO-218
Request Quote Now
Request Quote Now

We can supply NTE5540, use the request quote form to request NTE5540 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5540. The price and lead time for NTE5540 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5540. We look forward to working with you to establish long-term relations of cooperation.
