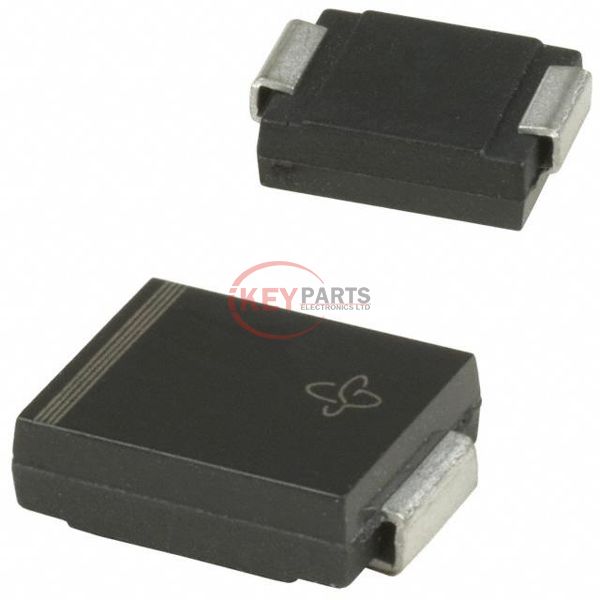

S5M-M3/9AT

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division S5M-M3/9AT

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
S5M-M3/9AT
Description
DIODE GPP 5A 1000V DO-214AB
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
S5M-M3/9AT PDF
S5M-M3/9AT Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1000 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If1.15 V @ 5 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)2.5 µs
Current - Reverse Leakage @ Vr10 µA @ 1000 V
Capacitance @ Vr, F40pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageDO-214AB (SMC)
Operating Temperature - Junction-55°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply S5M-M3/9AT, use the request quote form to request S5M-M3/9AT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S5M-M3/9AT. The price and lead time for S5M-M3/9AT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S5M-M3/9AT. We look forward to working with you to establish long-term relations of cooperation.
