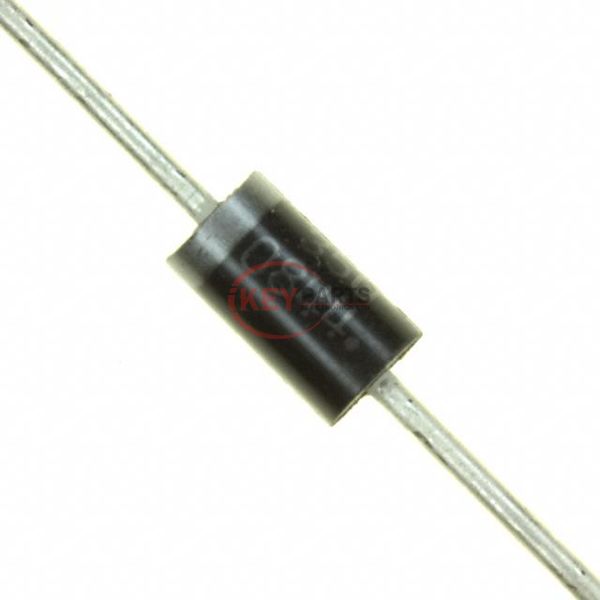

1N5820RLG

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor 1N5820RLG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
1N5820RLG
Description
DIODE SCHOTTKY 20V 3A DO201AD
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
1N5820RLG PDF
1N5820RLG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If475 mV @ 3 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr2 mA @ 20 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseDO-201AA, DO-27, Axial
Supplier Device PackageDO-201AD
Operating Temperature - Junction-65°C ~ 125°C
Request Quote Now
Request Quote Now

We can supply 1N5820RLG, use the request quote form to request 1N5820RLG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N5820RLG. The price and lead time for 1N5820RLG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N5820RLG. We look forward to working with you to establish long-term relations of cooperation.
