JANS1N5809

Enlarger

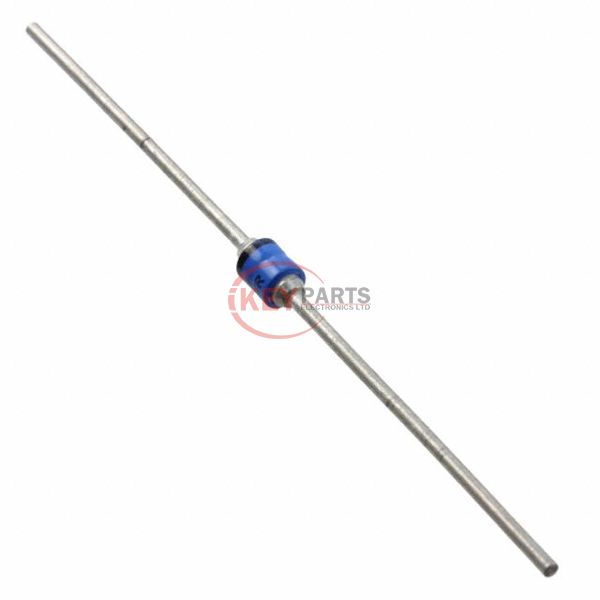

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology JANS1N5809

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
JANS1N5809
Description
DIODE GEN PURP 100V 3A AXIAL
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JANS1N5809 PDF
JANS1N5809 Tech Specifications
SeriesMilitary, MIL-PRF-19500/477
PackageBulk
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If875 mV @ 4 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)30 ns
Current - Reverse Leakage @ Vr5 µA @ 100 V
Capacitance @ Vr, F60pF @ 10V, 1MHz
Mounting TypeThrough Hole
Package / CaseB, Axial
Supplier Device Package-
Operating Temperature - Junction-65°C ~ 175°C
Request Quote Now
Request Quote Now

We can supply JANS1N5809, use the request quote form to request JANS1N5809 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JANS1N5809. The price and lead time for JANS1N5809 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JANS1N5809. We look forward to working with you to establish long-term relations of cooperation.
